Overview
Proven
for years in complex networking and performance demanding environments, Check
Point IP Appliances offer customers integrated turnkey security functionality
such as firewall, VPN, and intrusion prevention across a wide range of models.
Optimized
for Check Point Security Gateway software, the IP Appliances offer unsurpassed
scalability, high performance, manageability, and high port densities that
reduces operational costs in complex, mission-critical security environments.
IP Appliances enable customers to extend unified security architecture from the
network core out to branch and remote offices.
Using
just a two-rack-unit form factor, IP1285 security platform features a single
quad-core Intel Xeon processor, optimized to provide scalability and
investment protection by enabling customers to boost performance as needed with
the addition of one high port density Accelerated Data Path (ADP) module.
Benefits
·Integrated
security appliances based on Check Point Software Blade Architecture for
fast,
flexible deployment of security functionality
·Scalable,
modular, and configurable security architecture with multiple acceleration
(ADP service
modules), security, and interface options insures investment protection
·Achieve
high performance across a broad spectrum of traffic types
·Enterprise-class
high availability, scalability, and fault tolerance to insure network
resiliency
and business continuity
·Carrier-grade
serviceability and redundancy
·Streamlined
IT efficiency with advanced management tools for installation,
configuration,
and maintenance IP Appliances come in six models that deliver
security
solutions ideal for large enterprises, carrier-grade networks and remote and
branch
offices.
Base
Configuration:
·Single Quad
Core CPU
·4 ports of
10/100/1000Base-T
·5
front-facing PMC/XMC expansion slots??
·Console
port
·Auxiliary
ports (RJ45 and USB)
·Includes
VPN acceleration card
·Dual hot
swappable AC or DC power (for load-sharing and redundancy)
·Dual front
facing hot swappable HDDs
·Hard Drive and RAM
o HDD-Based System
§ 80 GB HDD
§
4 GB DRAM, 128 MB compact flash
o
Flash-Based System
§
4GB compact flash
§
4 GB DRAM
|

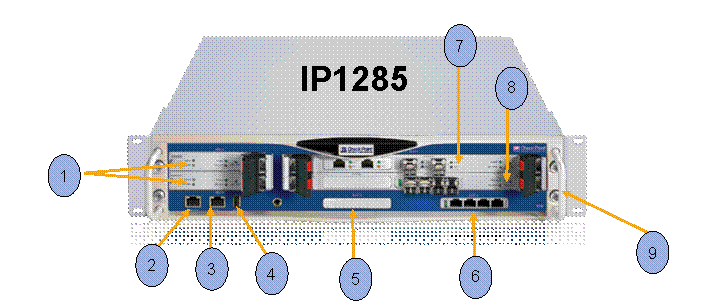

Base configuration includes 4 port 10/100/1000 |
|
|
|
|
|
4. USB port |
9. Slide-out tray |
|
5. PMC expansion slot
(slot 3) for optional PMC or XMC network interface cards |
|
Technical
specifications
LAN Support
· 10/100 Base-T (10/100
Mbps Ethernet) PCI Mezzanine Card (PMC)
1000Base-T
(10/100/1000 Mbps Ethernet) PMC
1000Base-SX (1000
Mbps Ethernet) SFP, Multi-Mode Fiber (MMF) ADP
1000Base-LX (1000
Mbps Ethernet) SFP, Single-Mode Fiber (SMF) ADP
10 GBase-SR (10 Gbps
Ethernet) XFP, MMF ADP
10 GBase-LR 10 km (10
Gbps Ethernet) XFP, SMF ADP
FLASH Base System
Configuration
4 GB CompactFlash
Dual, Redundant
Hot-Swappable Power Supplies
4 GB System RAM
(expandable via 8 DIMM slots)
4-port 1000Base-T
Ethernet NIC
HDD Base System
Configuration
128 MB CompactFlash
Dual, Redundant
Hot-Swappable
Power Supplies
4 GB System RAM
(expandable via 8 DIMM slots)
One 80 GB HDD
4-port 1000Base-T
Ethernet NIC
Performance
· Firewall 10.3/17.5 Gbps1
·
VPN - 1.9/8.3 Gbps1
· IPS - 7 Gbps
1 Performance without ADP/with ADP
Note:
Performance data represents the maximum capabilities of the systems as measured
under optimal testing conditions.
System Indicators
10/100/1000
Power Status on
System
Failure Status on
System
Port Status on
Network Interface Cards
System Operational
Indicator
Dimensions
·
Standard:
17.23 x 24.11x 3.46 in.
·
Metric:
438 x 613 x 88mm
·
Weight:
19.6kg (43.2 lbs)
Power Requirements
AC Input Voltage:
100-240V
Frequency: 50/60Hz
AC Input Current
Maximum: 8.3-3.4A
DC Input Voltage:
40-60V
DC Input Current
Maximum: 20-13A
Maximum Power
Dissipation: 625W = 2131 BTU/hr
Environment Operating
Conditions
Temperature:
32°-104°F / 0°-40°C
Altitude: 10,000 ft /
3048 m
Humidity: 10%-90%
(non-condensing)
Environment
Non-Operating Conditions
Temperature: -20°C to
+70°C
Humidity: Up to at
least 95% (non-condensing)
Compliance
Safety: UL60950-1, First Edition:
2003, CAN/CSAC22.2, No 60950:2000, IEC60950-1: 2001, EN60950-1:2001+A11with
Japanese National Deviations.
·
Emission Compliance:
o
FCC
Part 15, Subpart B, Class A
o
EN50024,EN55022A:1998,
CISPR 22 Class A
o
1985,
EN61000-3-2, EN61000-3-3;
·
Immunity:
EN55024: 1998
